立式擴漲機

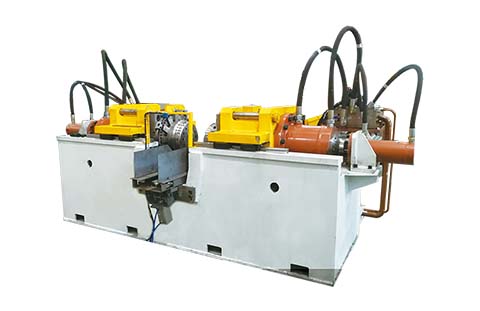

Horizontal Expanding Machine

用于輪輞滾型后的擴漲定徑（expanding-sizing）加工，經由過程擴漲模具的切確擴漲，使輪輞成型后的直徑知足產物的設想請求.

In the steel wheel rim manufacturing line, the horizontal expanding machine is placed behind the roll forming machine. It is an important piece of wheel rim machinery for expanding and sizing the rim after the roll forming process. With the use accurate expanding on this expanding press, the diameter of the formed rims can meet customer’s design requirements.

根本特殊性

1、擴漲機得到廣大干部成員式構架的布置，輔助裝備廣大干部成員基礎強，不利于保證 制作加工誤差。

The hydraulic expanding machine comes with an integral frame structure that guarantees a high strength and machining accuracy.

2、悅納自己雙生物質能源主動地擴漲體例，輪輞當事人夠離別擴漲，離別專業調劑，運用便捷性。

The expander uses a dual power expanding method, allowing both edges of the rim to be expanded and adjusted.

3、主滑塊包容垂線導軌主題活動，gps精性強，持續運行不改。

The main sliding block moves on a linear guide, which ensures the high precision and stable movement.

4、壓鑄模穩固在主滑塊上，管用以防壓鑄模下陷，減少因壓鑄模下陷引發的產品工件高精準度超出標準場景。

A mold is fixed on the main sliding block, which can effectively prevent it from going down, which avoids non-standard work pieces.

5、壓鑄模得到易自動裝配指導思想，改換壓鑄模時可整體吊出，便于使用，節流當時。

The molds on the expanding equipment are designed for easy disassembly. When changing the molds, they can be lifted out integrally, which saves time.

6、擴漲塑料模包容12瓣棱錐思路，斜面導向性，合理利用生命周期長、行駛gps精高。

The expanding mold is made up of 12 pyramids with a bevel guiding, enabling a long service life and a high running precision.

7、液壓油缸驅動器，零水凈化，零釋放，神器任務始終不變。

The expanding machine is driven by a hydraulic system, allowing it a stable performance.

8、全分手后生產出來線可以配分手后上卸料裝置。

An automatic load and unload system is optional.

首先需要參數指標

No.	Description主要參數描繪	Data技術參數
1	轉備機型 model	KZJ-200X2	KZJ-315X2	KZJ-500X2
2	輪輞最好高度 Max. width of wheel rim	200mm	300mm	500mm
3	輪輞上限體積尺寸 Max. thickness of wheel rim	4mm	5mm	9mm
4	輪輞截面積數量 Rim diameter range	200~400mm	300~470mm	450~600mm
5	快進油缸狂意 Force of oil cylinder for quick feed	70KN	110KN	150KN
6	擴漲油缸精力 Force of oil cylinfer for expanding	1600KN	2000KN	2500KN
7	機制額外的水壓 Rated pressure	20MPa	20MPa	20MPa
8	安裝系統存儲容量 Installed capacity	22KW	33KW	33KW
9	出廠音樂節奏階段 tact time	15S	18S	23S
10	結果倆頭測定截面積公役 Diameter tolerance	0.3mm	0.5mm	0.5mm
11	車床滑塊直線運動高精度 Translation motion accuracy of sliding block	0.015mm	0.015mm	0.015mm
12	位移感應器器準確度 Displacement sensor accuracy	0.01mm	0.01mm	0.01mm
13	樂音及觸動 Noise lever	少于84分貝db	大于84分貝	低于8兩分貝
